Everything you need to know about drill pipe float valves – and why you should source them through IRE

Author: Satish Raghunath



Drill pipe float valves (DPFV) play a vital role in safe and efficient drilling operations. These critical components prevent backflow during drilling, support pressure management and protect the drill string. At IRE, we are the sole distributor of the full Keystone Energy Tools float valves range and offer tailored solutions to streamline operations for our customers.

Backed by local inventory, continual product development and decades of industry experience, we are well equipped to solve any challenges and improve the reliability of your float valves in operation. Here’s everything you need to know about our exclusive supply of these critical products in the Middle East.

What are drill pipe float valves?

A DPFV is a one-way valve installed in the drill string, typically in the float sub, mud motor or a bored-out drill collar. Its main function is to prevent drilling fluids from flowing back up the pipe when circulation stops. This minimises pressure surges, reduces rig floor mess and supports well control operations – a frontline defence in maintaining well integrity during drilling.

What types of drill pipe float valves are available?

There are two main designs of DPFVs – plunger valves and flapper valves. While both serve the same core purpose, they operate differently and are suited to specific downhole conditions.

• Flapper valves

Flapper valves use a hinged plate (the flapper) that opens fully during circulation and closes quickly when flow stops, seals and prevents fluid return. They offer an unobstructed flow path when open, making them ideal for applications like managed pressure drilling (MPD) or operations using downhole tools that pass through the drill string.

Key capabilities include:

• Unobstructed bore for tool compatibility
• Rapid closure supports internal pressure control
• Suitable for high-performance MPD and directional drilling
• Helps protect blowout preventer (BOP) systems by maintaining well integrity

Looking for valves including pressure-monitoring or auto-fill functions? The GA or GCA product variations are ideal fits.

Check out our flapper valve range from Keystone



• Plunger valves

In contrast, plunger valves use a spring-loaded piston (also known as the plunger) that shuts off instantly when fluid flow stops. These are favoured where immediate shut-off is needed – especially during high-pressure drilling or directional work.

Key benefits include:

• Simple, compact design for easy maintenance
• Rapid shut-off to support well control
• Auto-fill options (Model FC) reduce rig floor mess
• Pressure-monitoring configurations (Model FA) available
• Less prone to hang-up or debris interference in the drill string

Look at our plunger valve range from Keystone



These options provide compatibility across standard and H₂S environments, with working pressures of up to 10,000 PSI. All Keystone valves are API-compatible and interchangeable with major OEM components.

To see a full overview and purchase-ready breakdown, download the full product specification guide.



Where are float valves typically used?

Float valves are essential in a wide range of drilling applications, particularly:

• Directional drilling for angle or horizontal well sections, where pressure management and debris control are critical.
• Managed pressure drilling (MPD) where precise wellbore pressure is maintained to avoid influx or formation damage.
• Standard drill strings across onshore and offshore operations, for well control and fluid management.

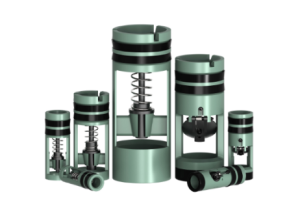

Precision-engineered drill pipe float valves by Keystone Energy Tools

DPFVs are precision components, and quality varies significantly between manufacturers. Keystone Energy Tools is widely recognised as a leader in the manufacture of DPFVs – offering the quality, reliability and traceability that today’s drilling operations demand. Its designs are trusted across the industry for both standard and sour service applications.

Keystone valves are known for:

• Full traceability: Each valve carries a unique serial number for lifecycle and repair tracking.
• Continuous R&D:  Designs are regularly refined using live field data and client feedback.
• H₂S-ready performance: Valves are engineered for sour service, with materials like Inconel and Viton.
• API compatibility: Fully interchangeable with major OEM systems.
• Responsive support: Fast turnaround on both standard supply and bespoke design changes.

We have worked exclusively with Keystone for over a decade, serving as its dedicated partner in the Middle East. This close relationship means we don’t just distribute products, we operate as a technical bridge between field needs and manufacturing expertise. From local stockholding to spec-matched repair kits, our support is grounded in real operational understanding.

Together with Keystone, we deliver more than just parts – we provide a reliable, integrated solution designed to meet your drilling challenges head-on.



How to repair drill pipe float valves

Keystone DPFVs are designed with field repair in mind. Most users can carry out inspections and maintenance in-house using dedicated repair kits matched to valve serial numbers.

These kits include new seals, springs and any required replacement components and enable users to:

• Inspect seals, springs and plungers for wear.
• Measure weight or spring load to identify fatigue.
• Replace worn parts using Keystone repair guides.

All repair kits and components are supplied from our Dubai-based inventory, ensuring clients never wait on critical spares and reducing downtime.



Tailored solutions built around your operations

While DPFVs are standardised tools, we go further to deliver solutions designed around customer requirements. Together, we can:

• Customise valves to specific rig conditions or well requirements.
• Co-develop upgraded designs to improve durability.
• Offer stocking agreements to minimise downtime and procurement complexity.

Whether it’s a material tweak, seal specification or full redesign, our team and Keystone’s engineers work together to meet exacting field needs. Discover how we worked in synergy with Keystone and a leading well service company to enhance DPFV performance in this case study.





DPFVs may be small, but make a big impact on seamless drilling operations. Getting the right specification, support and supply partner can make all the difference. Thanks to our exclusive partnership with Keystone Energy Tools, we provide trusted and tested products you can rely on.

To explore what we can unlock for your operations, start a conversation with our team to request a quote.
